A telescopic trailer is a semi-trailer with extendable loading area which has a loading length of up to 40 meters. The telescopic trailer is necessary for delivering goods such as rotor blades, wind turbines or iron girders to the site of operation.
The length of the loading area can be individually modified for each load by pushing the articulated truck apart or together using three telescopic extensions. The movable rear wheels of the heavy transport are especially important when cornering.

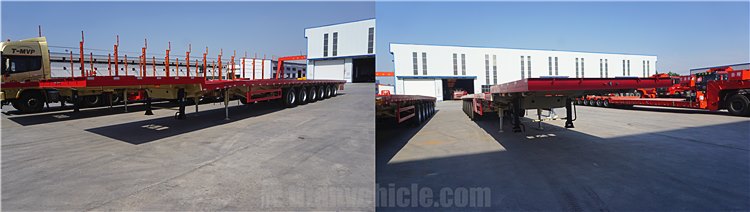

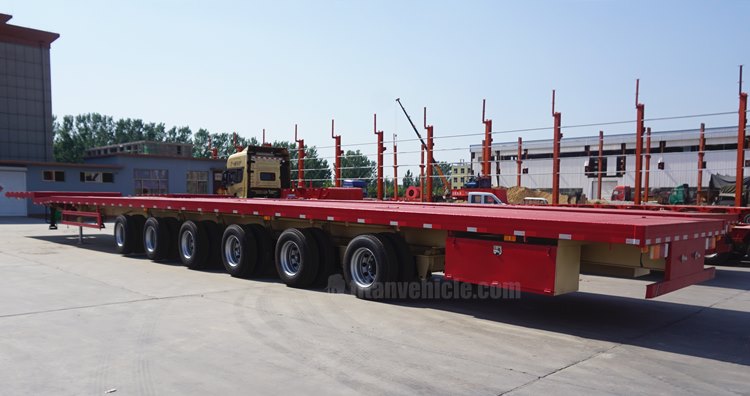

62M 6 Axle Telescopic Trailer for Sale in Vietnam
①Ordinary telescopic trailer transport vehicles are a bit similar to low-floor transport vehicles, but its girder adopts a buckle-box design. The girder is pulled to adjust the length of the vehicle to adapt to the transportation of vanes of different lengths. It is understood that the current domestic pumping The pull-type blade transport semi-trailer can be up to 62 meters long.
②The biggest difference between the axle blade transport semi-trailer and the ordinary telescopic trailer transporter is that the chassis adopts a hydraulic axis design, which makes the blade vehicle's cargo deck lower and steering more flexible.
③Lifting blade transport semi-trailer refers to a blade transport vehicle equipped with a hydraulic lifting device. It is mainly aimed at the transportation of blades in mountainous areas. In the case of flat roads, the blades are transported flat. In the case of extremely small turning radius in mountainous areas, raise the height of the items carried by the lifting device (usually 5-10 meters), shorten the length of the vehicle and bypass obstacles.
Longitudinally Telescopic Trailers
Longitudinally extendable is commonly used to transport very long cargo, like tanks and windmill blades and bridge sections among other similar-like cargo.
To take these loads, the telescopic trailer is extended lengthwise. When it is not carrying any load, it needs to be adjusted back to a short length. Its application and use should, however, be based on the stipulated local laws and driving safety.
Wide Telescopic Trailers
Wide telescopic trailers are commonly used for taking loads that are big width-wise. The trailer is normally expanded horizontally to give room for such loads.
When it is not taking any load, it needs to be adjusted back to a short width based on the local laws and rules governing driving safety.
To meet the needs of the large-scale movement and transportation of wide cargo on roads, the frame width of the trailer gets adjusted to take up the job.
Longitudinal Telescopic Trailer Basic Configuration
A conventional telescopic trailer configuration has a fixed frame and an additional frame that can be connected to the fixed one.
The second frame makes a slide-able contact with the fixed frame to provide the desired longitudinal extension.
This means that the free frame can move in a relative way to the fixed frame for purposes of either lengthening or shortening the apparatus of the trailer.
The movable frame is usually situated at the rear section of the tractor-towed trailer. This freely moving trailer is made up of a set of wheels and axle firmly secured to it.
Securing of the load is firmly made to the fixed frame.
Wide Telescopic Trailer Basic Configuration
This type of trailer is most applicable to such kind as are secured to tractors during the process of transporting loads.
This trailer mechanism is designed with possibilities of extending it to cater for loads of different lengths in preparation for towing by a tractor over a roadway.

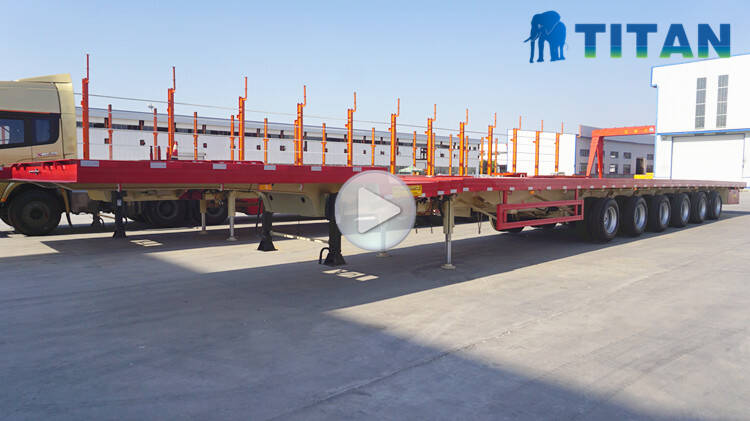

Through this video below, you can learn about different types of telescopic trailers.
As well as the process, testing, packaging and customer feedback, etc.
