The Pandora's Box will open again?
Recently, the orders for removable goodeneck lowboy trailer have been increasing. The functions of the gooseneck lowboy traile are also be improved. The enhancement is not only the carrying capacity, but also the destructive power to the general cargo market.
The lowboy detachable gooseneck trailer is particularly adapted to carry and transport large mobile equipment. It is able to do so due to its low-level trailer bed or frame and its gooseneck feature. Most important to note is that the trailer bed has backwardly placed moving wheels.
Here are the most important parts that enhance your operations with a lowboy trailer.
First, there are two interlocking pairs of the main coupling hooks. Lowering and raising the trailer assembly is made possible through the use of the synchronized hydraulic ram. These operate in between the trailer bed and the gooseneck at a point towards the back of the coupling hooks point.
Additionally, there is a retractable safety pin that is used to maintain the interconnection between the trailer bed and the hydraulic ram attachment of the gooseneck. The ram features offer a positive lock of thrust power load bearing blocks perfectly in a load bearing state when in normal operation. The control attachments for the trailer assembly components are well placed on one part of the assembly to enhance safe operating procedures.
80 Tons Removable Gooseneck Lowboy Trailer for Sale in Dominica
Removable Gooseneck Lowboy Semi Trailer
Lowboy semi trailers are usually used to transport heavy vehicles (such as tractors, buses, etc.), rail vehicles, mining machinery, forestry machinery, agricultural machinery (such as excavators, bulldozers, loaders, paving machines, cranes, etc.) and other heavy-loaded goods. Low, the better the stability and safety, the stronger the ability to transport ultra-high cargo and pass overhead obstacles.
When loading mechanical equipment on a lowboy semi trailer, the mechanical equipment is usually loaded from the rear of the semi trailer, that is, the mechanical equipment is moved from the rear wheel frame or the wheels are removed, and then the mechanical equipment is fixed on the semi trailer on.
1. TITAN lowboy trailer is with high tensile steel frame to ensure high load requirements on the bad road condition. High tensile structure steel with tensile and durable construction. Main beam adopts HG high strength steel, with high loading capacity
The yield strength of HG60 steel is ≥620Mpa, which is the yield limit of the metal material when it is yielded,the yield strength is higher, then it's much stronger.
So HG60 loading capacity is 5 times more than the trailer which is built by Q345 steel. Because the yield strenghth of Q345 steel is just 345Mpa
2. The lower working platform height for transport of high and voluminous loads. Low working platform: Hydraulic gooseneck lowboy trailer, easy for construction equipment. Generally the height is up to 650mm to 850mm
3. Side beam adopt “H” steel, height is 300mm, width is 140mm, and its thickness is 8/6/8mm. The durable design avoid the side beam to have the deformation.
4. Side support’s thickness is 6mm, the distance of the side support is only 450mm. The side support firmly connect the main beam and side beam to improve the whole vehicle’s loading capacity, prevent the working platform to have cave the deformation.
5. The loading ramps is made by high strength steel, with high loading capacity, will not happen to the deformation when carry heavy equipment.
6. The suspension width is 120mm, thickness is 10mm, and rotation pin of suspension we use 70mm. Ensure its have high loading capacity, and increase its capacity to twisting forces, shock, bump.

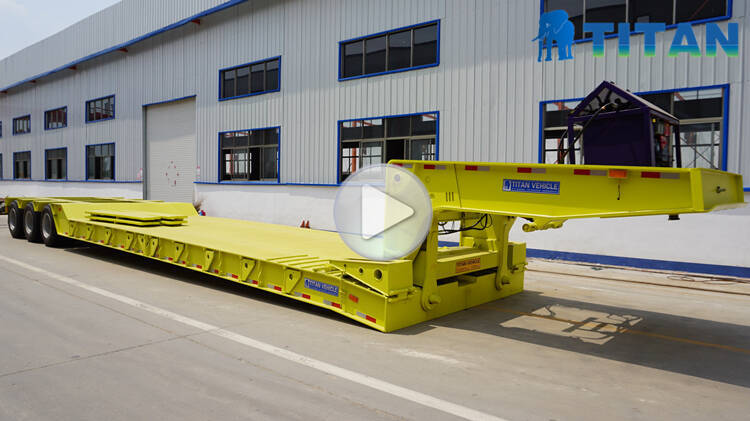

Through the video below, you can learn about different types of lowboy semi-trailers(like 3 axle detachable gooseneck lowboy trailers, 4 axle lowboy trailer, 3 line 6 axle heavy duty lowboy trailer, folding gooseneck trailer)
And the process, testing, packaging and customer feedback, etc.
