A detachable gooseneck trailer is a semi trailer with two drops in deck height: one right after the gooseneck and one right before the wheels. This allows the deck to be extremely low compared with other trailers. It offers the ability to carry legal loads up to 12 ft (3.66 m) tall, which other trailers cannot. Lowboys are used to haul heavy equipment such as bulldozes industrial equipment etc.

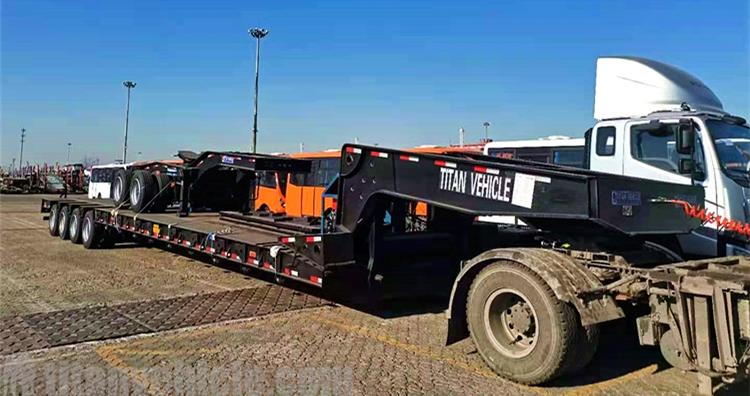

100ton 4 Axle Detachable Gooseneck Trailer for Sale
The detachable gooseneck trailer is used for trailers that carry oversize and overweight cargo. The basic form of a heavy trailer is a monocoque trailer. It generally has the following structure. The frame and the wheel axles and axles are mostly collinear, that is, there are two left and right axles on one axis, which is also called a two axis row. Common monocoque trailers have 2 to 10 axes. One wheel axle is equipped with 4 tires, and one axis has 8 tires.
Therefore, the width of the whole car can reach more than 3 meters. In order to reduce the center of gravity of the whole vehicle, a steel wire radial wide rim tire with a small diameter and a large load capacity (see car tires) is generally installed. Each tire can withstand a load of about 4 tons under low speed operating conditions. The frame adopts a high-strength alloy steel box section welded structure.
It adopts hydraulic automatic steering and comes with a hydraulic pump station power system. Now it is necessary to introduce technology.
The series of detachable gooseneck trailer have flat, concave beam and tire leakage structures. The frame is stepped and the longitudinal beam section is I-shaped, which has the characteristics of rigid height and strong heig detachable gooseneck trailer is used for pulling mechanical equipment, large-scale equipment such as excavators, bulldozers, etc. The second and third bridges can be equipped with 30 tons, 50 tons, 60 tons, 80 tons, 100 tons, 120 tons, and 300 tons. Pulling and optional hydraulic ladder trucks have a low level of shelf and column to ensure the stability of transportation and are suitable for carrying all kinds of construction machinery, large equipment and steel.
It adopts three-axis balance type, two-axis balance type or rigid suspension. There is a mass balance block between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs change by the same amount, so that the front and rear axles are balanced in force, and the welding is protected; The frame is shot blasted to make the vehicle more beautiful, strong and durable. The use of vehicle bridges to cross the girder effectively reduces the ground clearance of the cargo platform. The increased passing capacity of the vehicle can load objects with larger diameters. It is ideal for transporting wind turbine towers and large-diameter cargo.
1. Strong carrying capacity
Most of this type of Detachable Gooseneck Trailers have large tonnage, so the body is mostly designed with an arched cargo bed, and the longitudinal beams are mostly multi-longitudinal high-strength steel structures, which reduces the weight and improves the carrying capacity.
Lowboy trailer's main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability.
Due to the low ground clearance and low longitudinal beam height of this kind of Gooseneck Lowboy Trailer, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable lowboy semi-trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
Oilfield trailers bottom plate, Other suppliers usually use 3 or 4 mm bottom plate, But TITAN adopt 5 mm thick bottom plate, It’s more durable and won’t be deformed.
3. Good performance
The cargo bed load-bearing surface of the lowboy trailer can be adjusted to the ground height by a hydraulic device as needed, and when it passes through culverts or bumpy roads, the cargo bed load-bearing surface can be lowered or raised to improve its passing performance.

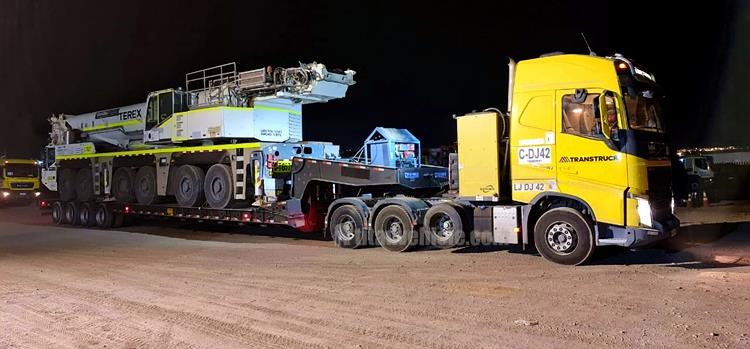

Detacahble gooseneck trailer's feedback from customer
4. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
5. Easy maintenance
Because the bearing surface can be raised and lowered, the tires on a bridge can be grounded, and other tires can be safely and conveniently replaced or other maintenance work without detaching.

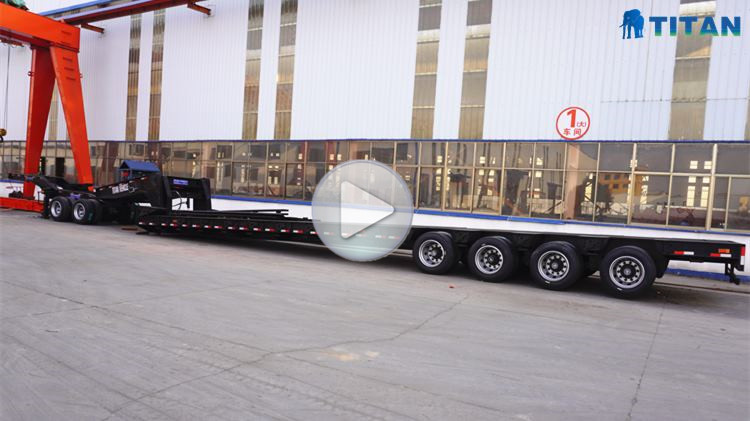

Through the video, you can know different types of 100ton detachable gooseneck trailer , 4 axle detacahble gooseneck trailer for sale , lowboy detachable gooseneck, etc.
Please click "TITAN Removable Gooseneck Trailer" to get detailed video!
Welcome to leave your inquiry! We will provide more details, price, catalog, drawing, videos for you!
