100 Ton Folding Gooseneck Trailer will be sent to Ghana
Ghana customers came to TITAN to consult about the business of folding gooseneck trailer through a friend's introduction. Sales manager Barry introduced the 4 axle 100 ton folding gooseneck trailer in detail and sent a detailed quotation and various detailed pictures and videos to the customer to help customers understand TITAN's folding gooseneck trailer more systematically and quickly.

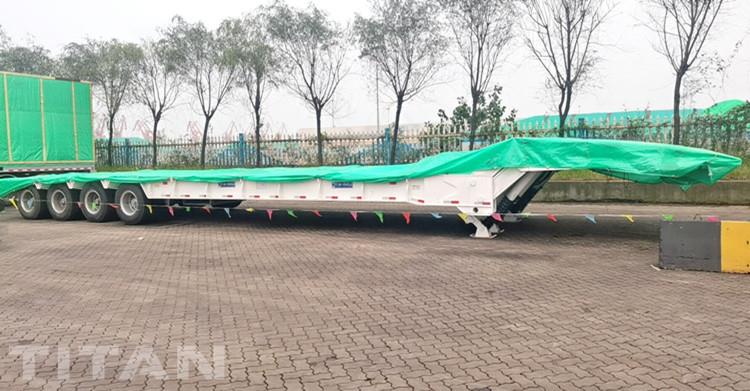

After a series of conversations, the customer finally chose TITAN among the 5 suppliers. Below is a picture of received the 4 axle 100 ton folding gooseneck trailer.
Details of 100 Ton Folding Gooseneck Trailer for Sale
Folding gooseneck trailer is a kind of front-loading trailer, different from the RGN trailer, you can load the trailer from the front of the lowbed trailer(could be flatbed trailer) but no need to dismantle the gooseneck from the trailer body. It is widely used for transporting construction machines no matter they are with tires of crawlers.
Lowbed trailer with a foldable neck makes you move construction machines easily even without crane’s lifting. When unhooking from the prime mover, the semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.
Conventional lowbed trailer normally equipped with hydraulic ramps at the rear side of the trailer, which can help with the loading of the cargo machines. Because of the height of the trailer, the ramps are steep. If the cargo is too heavy, it would increase risks during loading by the hydraulic ramps.

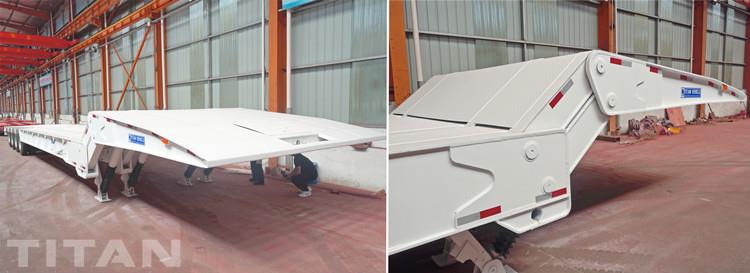

The gooseneck is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the trailer with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, folding gooseneck trailer is shallow and stable, could effective solutions for cargo loading.

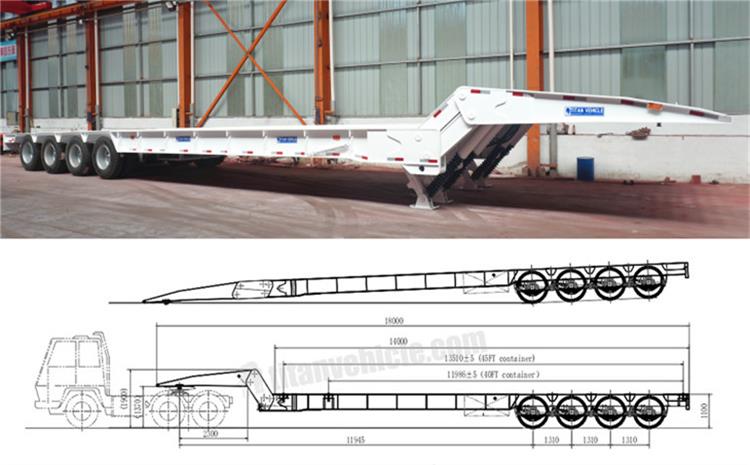

Drawing of 100 Ton Folding Gooseneck Trailer for Sale
One end of the connecting rods hinged with a traction gooseneck(front part of the gooseneck), another end hinged with the low platform.

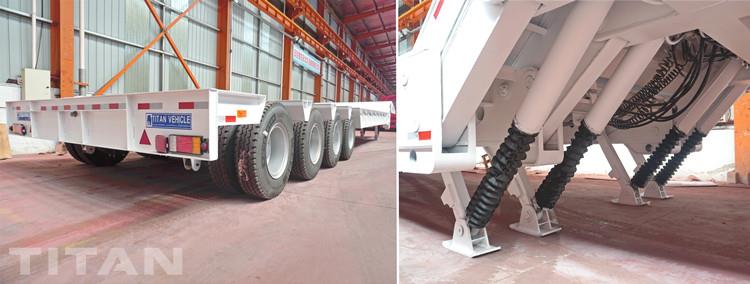

The hydraulic cylinder is articulated with a cylinder base and a support base. The cylinder base is welded with the front part of the gooseneck.
There is a rubber anti-skid cushion under a supporting base to stable the folding gooseneck trailer during transportation.
Two cylinders are designed in the gooseneck to increase safety, balance, and stability
The function of folding is realized by hydraulic cylinders and connecting bars which deployed inside the gooseneck. Connecting bars connect parts of the gooseneck and trailer body in an articulated (hinged) way.
Hydraulic folding gooseneck trailer has hydraulic cylinders connecting trailer chassis and connecting rods in the neck. The number of cylinders can be 2 or 4 units. After the neck folded or unfolded, we can use limited block(stop block) to lock the neck.
You can download video, you can learn about different types of side wall semi trailers(like low bed gooseneck trailer , 60ton/80ton/100ton/120ton/150ton low bed gooseneck semi trailer , 80ton 3 axle low bed gooseneck trailer for sale). And the process, testing, packaging and customer feedback, etc.
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, welcome to leave a message in the board below
