2 unit 40ft skeleton trailer has finished and will be sent to Namibia Luderitz.
2/3 Axle 40Ft Skeleton Trailer for Sale In Namibia Luderitz
The Namibia client has a small workshop in the local area. He has 40-foot container, which is mainly used to transport bulk cargo. According to the actual situation and needs of the customer, we recommend the customer 3 Axle skeleton trailer and 40ft skeleton trailer for sale .
Skeleton trailer for sale is usually used to transport 20ft or 40ft containers, they are mainly used for container transportation supporting ships, ports, shipping lanes, highways, transit stations, bridges, tunnels, and multimodal transport.

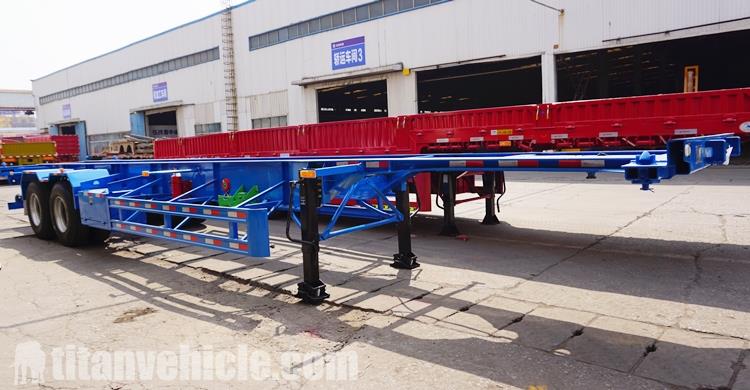

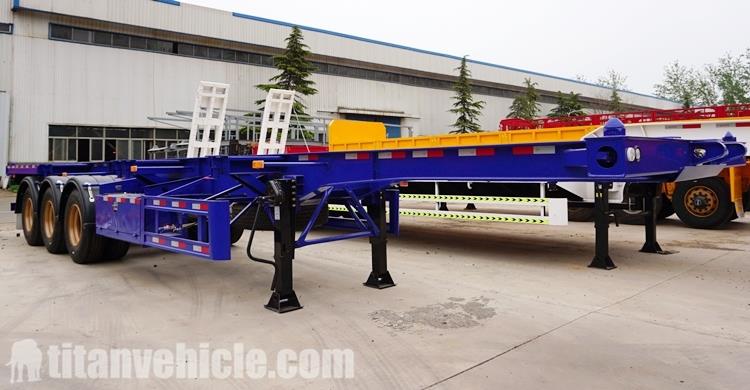

40ft skeleton trailer for sale
TITAN hot-selling models: 40 feet (13.95 meters long) 2 axle and 3 axle 40ft Skeleton Trailer for Sale, the whole vehicle is designed and manufactured with high-strength steel, the weight of the 2-axle vehicle is about 3.7 tons, and the weight of the 3-axle vehicle is about 4.6 tons ( The weight varies according to the number of axles). It has the characteristics of low cargo platform, lightweight, high reliability, convenient loading and strong applicability.
There are 2 sets of locks on each side of the frame semi-trailer, which is equipped with the customer's own container for loading and unloading. This 40ft Skeleton Trailer for Sale optimizes the structure of the car on the basis of improving the frame material and combines the calculation results of the finite element analysis of the skeleton trailer to optimize the structure of the stress concentration part again, making the car more reliable and better.
When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required. Its function is to support the ground and bear the front load of the semi-trailer when the traction device is disengaged from the trailer. There are two types of supporting devices, single-acting type and linkage type.

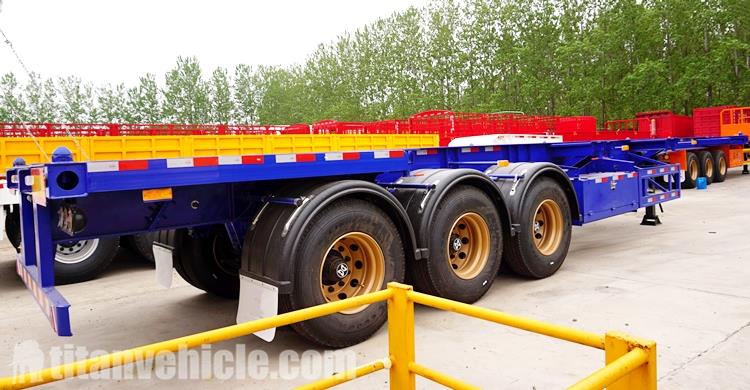

2 axle skeleton trailer price
They are mainly composed of a supporting plate, a screw drive mechanism, a reduction box and a joystick. There are three types of suspension devices: single-axle suspension and double-axle suspension and three-axle suspension. The 40ft Skeleton Trailer for Sale is equipped with two spare tire frames, which are installed on the left and right sides of the trailer frame, and are equipped with spare tire lifters.
The 40ft Skeleton Trailer for Sale is specially used for the transportation of various containers. Its wear resistance, toughness, tightness, and corrosion resistance are several times that of conventional semi-trailers. It has the advantages of no skin, no stab, no water absorption, etc., and has a long service life. improve.
40ft Skeleton Trailer for Sale is a new structure product developed on the basis of the mature structure of similar semi-trailers and combined with the design concept of high-quality semi-trailers. Customers bring higher economic benefits.

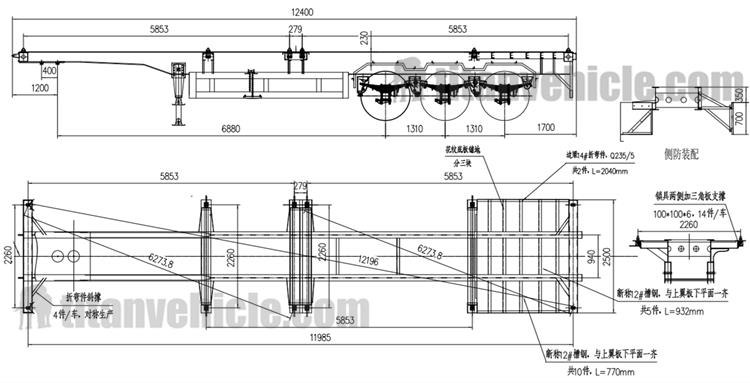

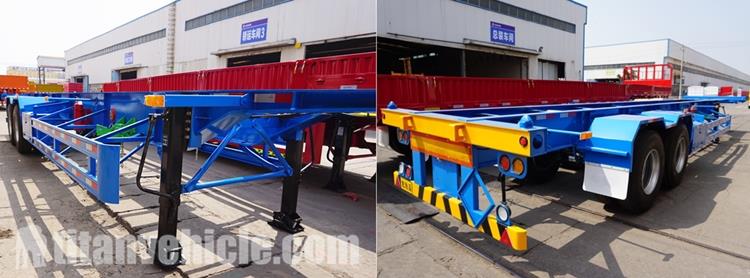

Details of 40ft skeleton trailer
skeleton trailer for sale is welded by longitudinal beams, cross beams and front and rear end beams. The longitudinal beams are made of steel plate 16Mn submerged arc welding into an I-shape (the main dimensions are 450 and 500). The beams are stamped into grooves with steel plates. The front and rear beams are a Welded rectangular section. The middle container locking device is equipped with an integral long beam to improve the carrying capacity of the container locking device.
A container compaction device is installed on the frame, which can load two standard containers of 40 feet and 20 feet. The four container shrinking devices at the front and rear ends are of a fixed structure, and the middle container shrinking device is a concealable structure.
When loading containers, the intermediate container locking device can be lowered below the level of the cargo platform as required. Its function is to support the ground and bear the front load of the 40ft Skeleton Trailer for Sale when the traction device is disengaged from the skeleton trailer for sale. There are two types of supporting devices, single-acting type and linkage type.
Through this video, you can learn about different types of container chassis trailers, like 2/3/4 axle skeleton chassis for sale, 20/40ft skeleton container, interlink container trailer, terminal trailer, and the process, testing, packaging and customer feedback, etc.
