3 Axle 40ft Skeleton Trailer will be sent to Sudan khartoum
Today we continue to share the progress of our factory. We received the factory notice and the 3 axle 40ft skeleton trailer was completed on June 8st. Now in the stage of acceptance and packaging.
After all our semi trailers are completed, they will be inspected and tested by special personnel to ensure the quality of the semi-trailer. Of course, if you have any questions after receiving the semi-trailer, you can always contact our after-sales staff. We will answer your doubts 24 hours a day.

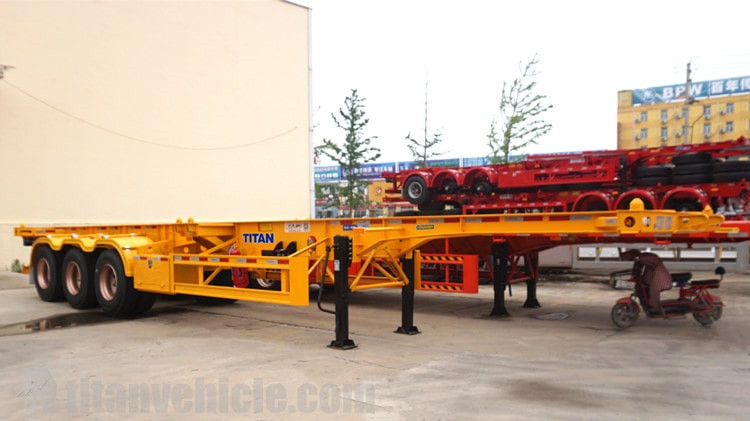

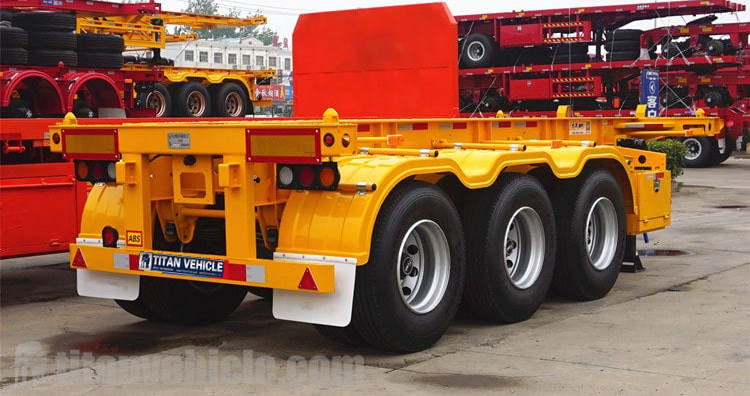

40ft tri axle skeleton trailer
The skeleton trailer can transport containers and non-dangerous goods tank container structure semi-trailers. The subjective structure of this vehicle is straight beam type or front neck small gooseneck type. It is mainly used in the logistics system of ships and multimodal transportation to support ports, routes, highways, transfer stations, bridges and tunnels. The skeleton trailer has reasonable structure, high strength and beautiful appearance design. A container compaction device is installed on the frame, which can load two 40-foot and 20-foot standard containers.
The four container shrinking devices at the front and rear are fixed structures, while the middle container shrinking device is a concealable structure. The skeleton trailer has stable quality and reliable performance. Specially used for the transportation of various containers, it can be reused for a long period of time, and has sufficient strength, it can be quickly loaded, unloaded and transported, and it can be directly and conveniently changed from one transportation method to another transportation method .
1. Check whether the tractor and the skeleton trailer match before connecting. If the bottom surface of the semi-trailer's traction pin plate is not suitable for the height of the plane center of the towing seat body, it cannot be connected. At the same time, pay attention to the container's oncoming surface distance. Prevent collision between the front face of the container and the tractor when the train turns.
2. When connecting, please note that the bottom surface of the semi-trailer traction pin plate is 1-30mm lower than the center of the upper surface of the traction seat body. Make sure that the separation joystick is in the separated state. The longitudinal symmetry plane of the tractor and semi-trailer should be consistent, and the deviation should be less than 40mm.
3. After connecting, check the position of the lock block carefully to prevent the lock block from bounce off when driving. The span hose joint that connects the semi-trailer and the tractor needs to be connected to the brake pipeline of the train, and check the pressure of each part Whether it meets the specified value. Connect the circuit of the semi-trailer and the tractor to ensure that the various signals of the semi-trailer work normally.

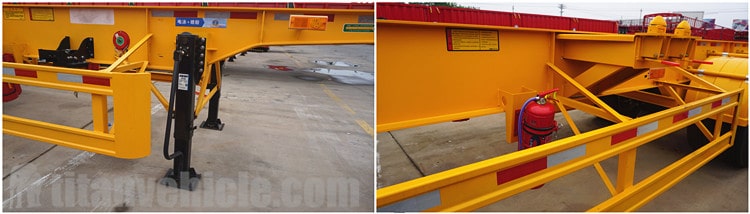

4. Separate the electrical connector and the jumper hose joint before unhooking. Make sure that the semi-trailer is parked reliably, and then shake the outrigger handle to make the outrigger fall to the ground, and raise the semi-trailer tire by 20-500mm for traction. The car slowly left the skeleton trailer.

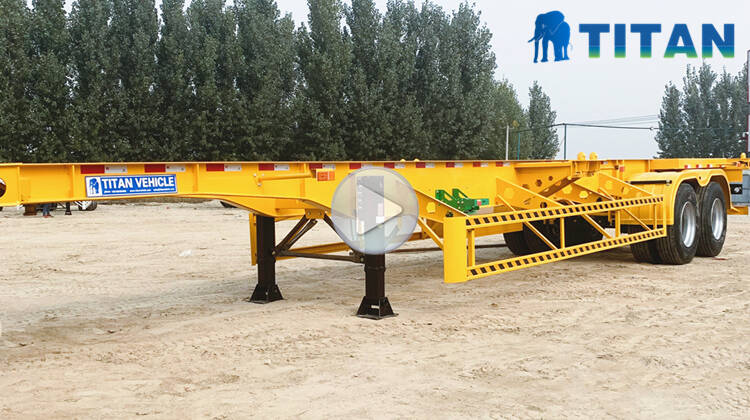

Through the video you can learn more about the skeleton trailer , 3 axle 40ft skeleton trailer , tri axle skeleton trailer.
