80 Ton Excavator Trailer for Sale will be sent to Nigeria Lagos.
3 Axle 80 Ton Excavator Trailer for Sale in Nigeria Lagos
Mr. Nick, a Nigerian customer, is an old fan of TITAN Facebook. Although he has not purchased TITAN’s semi trailer, he has introduced us to many local customers. Mr. Nick saw feedback from Uruguayan customers on the TITAN Facebook before, and the customer immediately contacted us and said that after this, a similar 3 axle low loader trailer may also be needed.

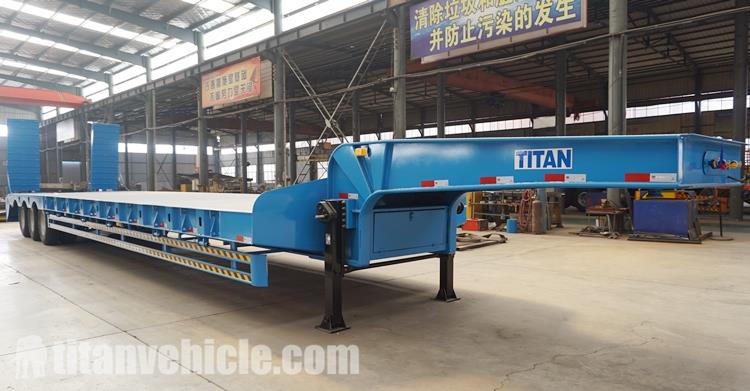

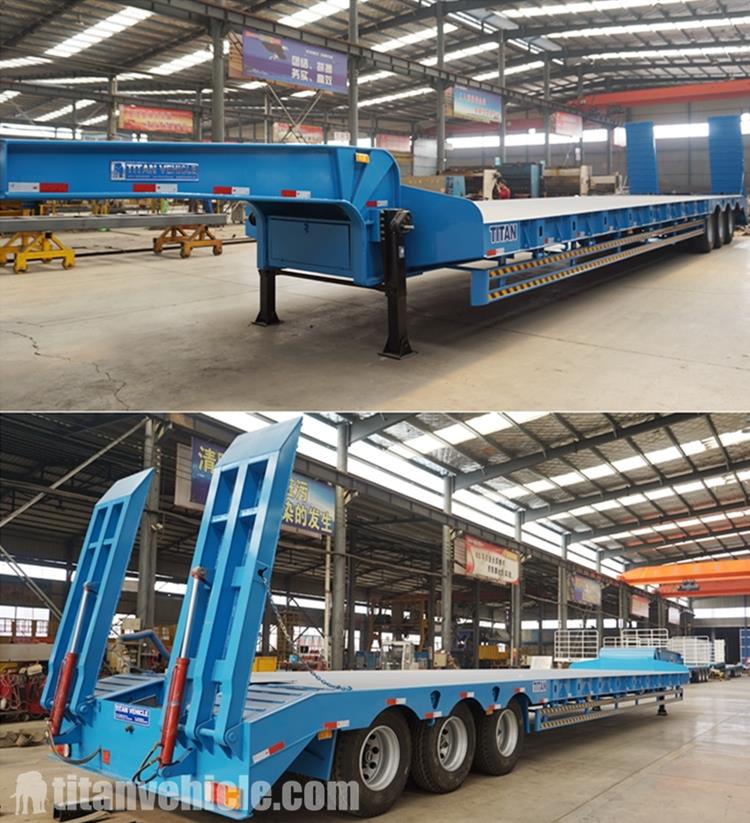

In January 2021, we received the customer's order, and the sales manager Ada processed the detailed configuration for a total of 2 days. On the third day, the customer bought the 3 axle 80 ton Excavator Trailer for Sale. Below is the completed picture.
Excavator Trailer is usually used to transport heavy trucks, rail vehicles, mining machinery, forestry machinery, construction machinery and other heavy-duty goods. The lower the center of gravity, the better the stability and safety. It can transport super-high goods and pass overhead obstacles. The stronger the ability.
3 axle excavator trailer manufacturer
1. The 80 ton Excavator Trailer has a flat, concave beam and tire exposed structures. The longitudinal beams are straight or gooseneck. The frame is stepped, and the longitudinal beam section is I-shaped, which has the characteristics of high rigidity and high strength.
2. The main plane of the frame and cargo platform is low, which ensures the stability of transportation and is suitable for carrying all kinds of construction machinery, large equipment and steel materials.
3. It adopts three-axis balanced, two-axis balanced or rigid suspension, with mass balance blocks installed between the front and rear leaf springs, which can make the deflection of the front and rear leaf springs be changed by the same amount so that the front and rear axles are balanced;
4. Excavator Trailer for Sale adopts advanced computer-aided design software, which is optimized for a flexible and diverse design. The load-bearing surface of the frame is designed according to user requirements to meet the transportation of various special goods.

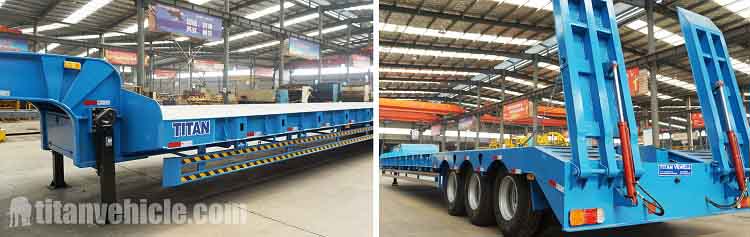

Details of 3 Axle 80 Ton Excavator Trailer
1. The side beams are generally channeled steel or bending parts. At present, most trailers use channel steel, and there will be more side beams for light body hanging bending parts because the strength requirements are not too large. The supporting beam is a through beam, and now most of them are W beams.
2. The traction pin is an important component that connects the 3 axle Excavator Trailer to the tractor and bears the traction force and is connected to the traction seat. It is generally made of steel with a chromium alloy structure.
3. The general semi-trailer suspension is a non-independent steel stamping rigid suspension, which is composed of a series of leaf springs and suspension support to support the load and reduce the impact of the vehicle's cargo dynamic load. Due to the different uses of special vehicles, there are different requirements for the design of the suspension. There are four types of suspension commonly used: series-connected leaf spring balanced suspension, single-point suspension, air suspension, and rigid suspension.

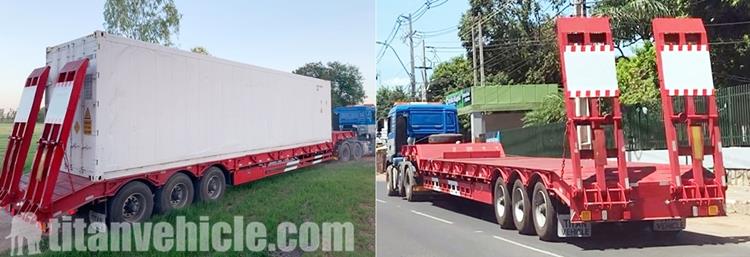

Feedback of Uruguay Customers of 3 axle excavator trailer
4. The electrical system of the 3 axle excavator trailer for sale is composed of seven-core sockets, cables, gas circuits, various lamps, etc. It is used for lighting, safety warning and gas supply for brakes.
5. The support device of the 80 ton excavator trailer is mainly used to support the trailer when it is detached, and is composed of legs and connecting brackets.
6. Other attachments on the Excavator Trailer for Sale include toolbox, spare tire frame, gantry frame, piles, etc. There are also some small accessories such as tight ropes and rope hooks that are very functional and can be selected according to the type of goods.

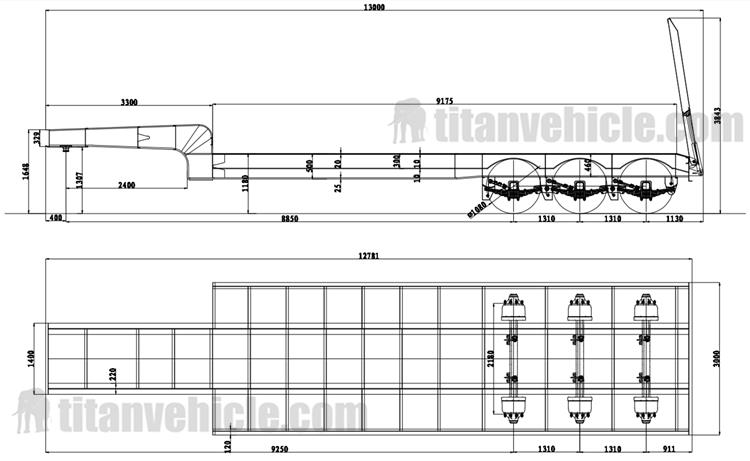

Drawing of Excavator Trailer for Sale
You can download video, you can learn about different types of lowbed semi-trailers, like 2axle, 3axle, 4axle lowbed semi trailer, hydraulic ladder excavator trailer, etc. As well as the process, testing, packaging and customer feedback, etc.
