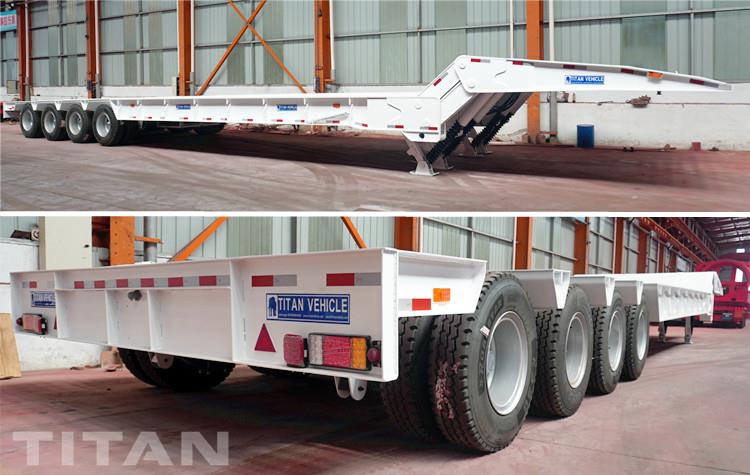

4 Axle 100T Hydraulic Folding Gooseneck Trailer for Sale in Senegal
The Senegal client runs a transport company and needs a gooseneck trailer to transport excavator and other large equipment. Because customers have certain requirements for efficiency. Therefore, folding gooseneck trailer is recommended.
Compare to the removable gooseneck trailer, a folding gooseneck trailer can increase the efficiency of your transport fleet, because when the prime mover(tractor) finished one job, it can be detached from the trailer and go for another transport job. And the operator can load and unload cargo simultaneously without the presence of the prime mover.

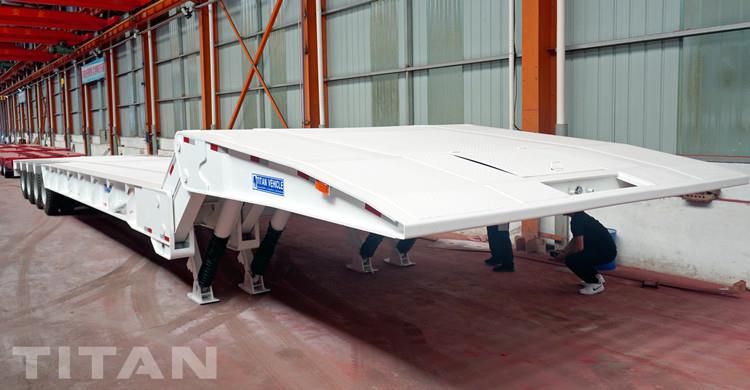

Folding gooseneck trailer is a kind of front-loading trailer, different from the detachable gooseneck trailer, you can load the trailer from the front of the folding gooseneck trailer but no need to dismantle the gooseneck from the trailer body. Hydraulic folding gooseneck trailer makes you move construction machines easily even without crane’s lifting. When unhooking from the prime mover, the semi trailer’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.
4 Axle 100T Hydraulic Folding Gooseneck Trailer for Sale in Senegal
One end of the connecting rods hinged with a traction gooseneck(front part of the gooseneck), another end hinged with the lowbed trailer.

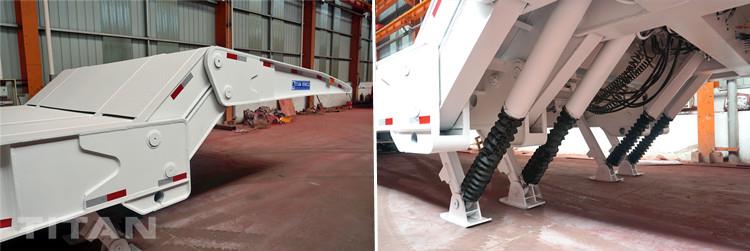

The hydraulic cylinder is articulated with a cylinder base and a support base. The cylinder base is welded with the front part of the gooseneck.
There is a rubber anti-skid cushion under a supporting base to stable the folding gooseneck trailer during transportation.
Two cylinders are designed in the gooseneck to increase safety, balance, and stability
The function of folding is realized by hydraulic cylinders and connecting bars which deployed inside the gooseneck. Connecting bars connect parts of the gooseneck and trailer body in an articulated (hinged) way.

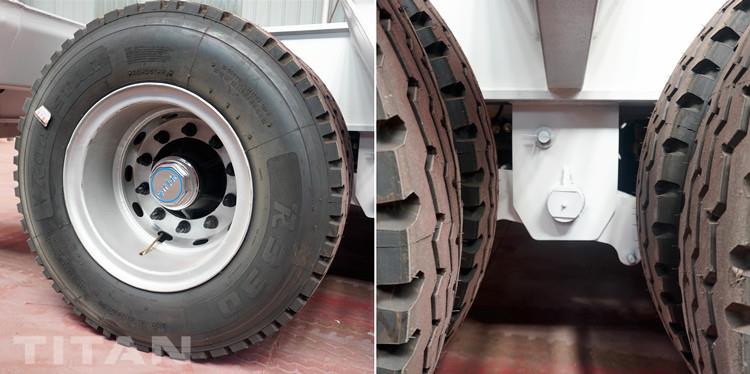

Details of 4 Axle 100T Hydraulic Folding Gooseneck Trailer for Sale
Hydraulic folding gooseneck trailer has hydraulic cylinders connecting trailer chassis and connecting rods in the neck. The number of cylinders can be 2 or 4 units. After the neck folded or unfolded, we can use limited block(stop block) to lock the neck.
Hydraulic folding gooseneck trailer operations
When the neck is erected, using locking pins to lock the front part of the gooseneck and the trailer chassis. The semi-trailer is connected with the tractor. Lowering the cargo platform to touch the ground
Unhook the traction base with traction pin. Drive the tractor off the trailer. Control the hydraulic cylinders and take off the locking pins to unfold the neck on the ground. The unfolding gooseneck become a shallow slope for cargo loading. After the loading process, just reverse the above steps to fold the neck and connect the prime mover.
Details of 4 Axle 100T Hydraulic Folding Gooseneck Trailer for Sale
You can download video, you can learn about different types of side wall semi trailers(like low bed gooseneck trailer , 60ton/80ton/100ton/120ton/150ton low bed gooseneck semi trailer , 80ton 3 axle low bed gooseneck trailer for sale). And the process, testing, packaging and customer feedback, etc.
This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, welcome to leave a message in the board below
