40 Ton Side Loader Container Trailer will be sent to Cote d'Ivoire.
40 Ton Side Loader Container Trailer for Sale In Cote d'Ivoire
In 2020, Misskeith from Ivory Coast saw the TITAN side Loader Container semi trailer at work in the local area. At the moment, Misskeith had no plans to purchase a side Loader Container and watched the work effect of the local customer's side loader container trailer. In 2021, due to the business expansion of the Misskeith factory, he needs a 40 ton side Loader Container trailer to work for him. Misskeith found our old local customer, asked him about our contact information, and got in touch with our sales manager Jacky.
Jacky showed the customer the details about the 20/40ft side Loader Container. The customer said that he had seen TITAN's side loader container trailer locally. Although it has been used for 3 years, it still works very well without any problems. Finally, according to the customer's needs, 40 ton side Loader Container was purchased for the customer's business.
20/40Ft Side Loader Container Trailer for Sale Manufacturer
1. Knob switch is start and alarm switch:
The system gets through power just or enters into a sleeping state, only shift the switch can start remote control. When need to give the alarm, shift the switch to the position marked, when release it, the switch will back to the original position, an alarm is stopped.
40 Ton side Loader Container knob switch also used for compulsory operation after anti-turnover control. Shift switch to them once, shield anti-turnover of 5s.it is only available shift it again after 30s interval.
2. Self-lock switch is used for controlling speed:
High speed is denoted by the “rabbit” pattern; high speed is denoted by the “tortoise” pattern. used for selecting operation mode: 0-no operation, L-LEG-leg operation mode, B-BOOM-boom operation mode.

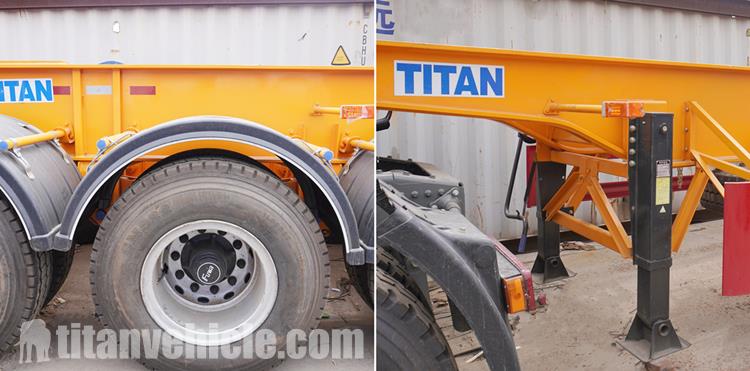

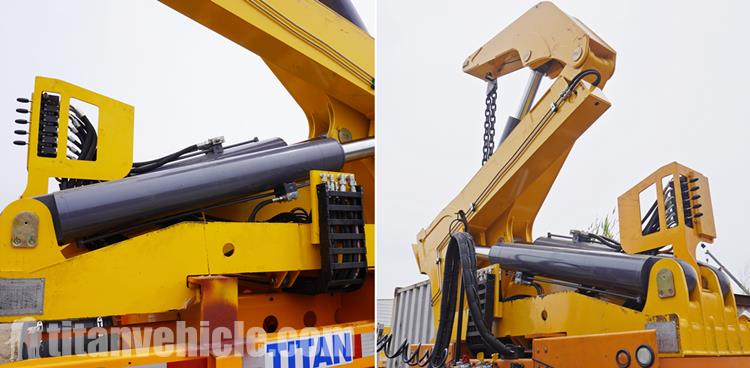

Details of 40 Foot Side Loader Container Trailer with Price
3. Self-lock switch, used for selecting operation mode: when non-synchronization:
40 Foot side Loader Container left side handle to control the motion of front lifting, and the right side handles to control the motion of rear lifting; when synchronization: left side handle can control the motion of front and rear lifting simultaneously, the right side handle has no effect.
4. Side Loader Container remote control or other place is equipped with a buzzer
It is used for warning persons of the low power supply, of course, at the same time, the buzzer can sound to warn persons of the condition. The handles on the top of both sides are universal proportion handle, used for lifting/dropping upper boom, swinging down the boom, lifting/dropping support leg, retracting/extending support leg.

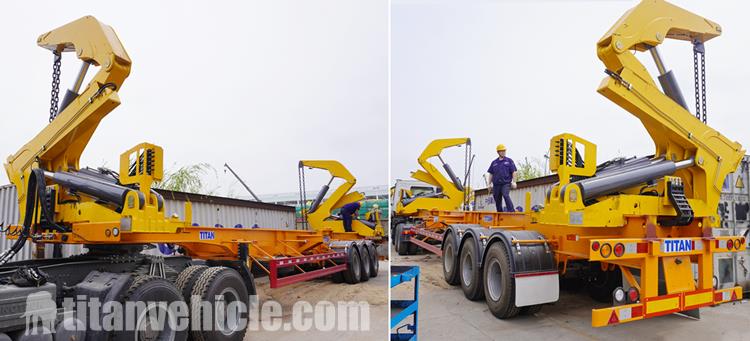

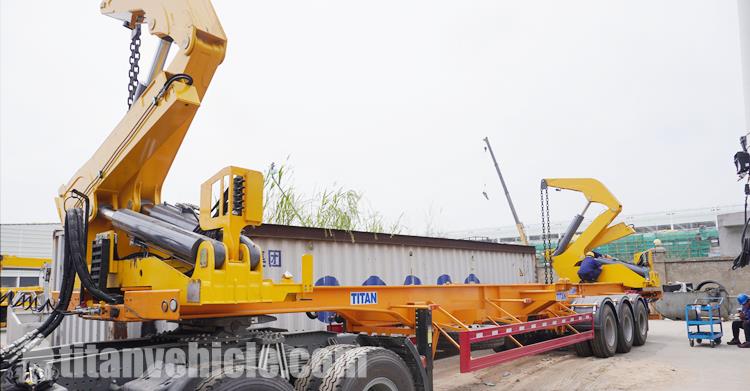

Factory Show of 20 Foot SideLoader Container Trailer for Sale
When the container has unloaded the distance from the end of the container to the end of the side Loader Container is approx. 1m. This is due to the outrigger leg, lifting arm and controls.
The side Loader Container will need at least 3 to 4 meters of clear space in front to drive away after unloading. The land where the side Loader Container parks to unload needs to be relatively level. If the site is sloping the 40 ton side Loader Container can unload if parked across the slope but it is more difficult if the 20ft side Loader Container is positioned facing up or down the slope.
Most transport companies don’t like to take their side loader container truck off-road. If delivery is into an area where the ground isn’t sealed or compacted / hardstand, the driver will inspect the area and make a judgment whether or not to proceed.
Also, have an alternate site to place the container in case the driver won’t go off the compacted surface. On occasions, side loader container can be used to position containers over low fences. To achieve this, the two outrigger feet of the side Loader Container need to protrude through the fence line. This means that some sections of the fence may need to be removed.

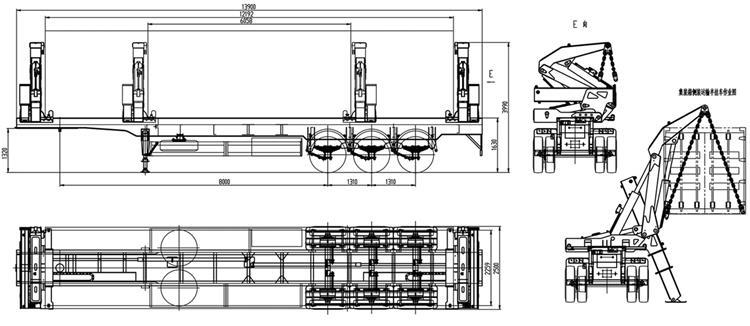

Drawing of 20/40 Foot 40 Ton Side Loader Container Trailer
