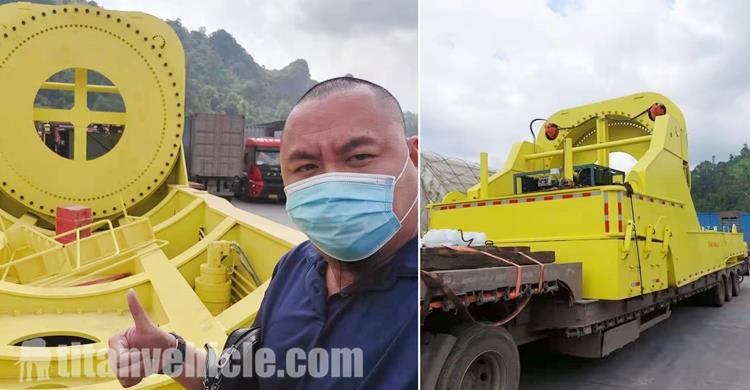

Wind Blade Trailer Feedback from Vietnam Customer
The Vietnamese customer and the sales manager Jacky negotiated for 3 months and finally purchased 6 axle telescopic trailer and Wind Blade Adaptor from TITAN. The reason for his purchase was not only TITAN's quality assurance, but also perfect after-sales service. TITAN has a dedicated after-sales department to help customers who do not have problems with operations to solve problems.
Yesterday we received feedback from customers, and they were very satisfied. And said that if it is needed again, it will cooperate with TITAN.

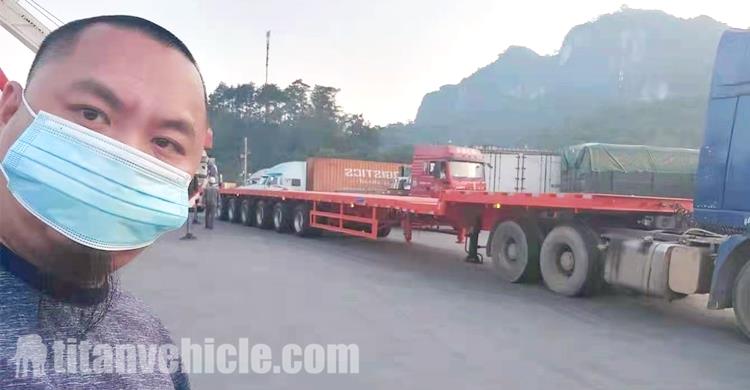

6 Axle Wind Blade Trailer Feedback from Vietnam Customer
The Design of the Wind Blade Trailer

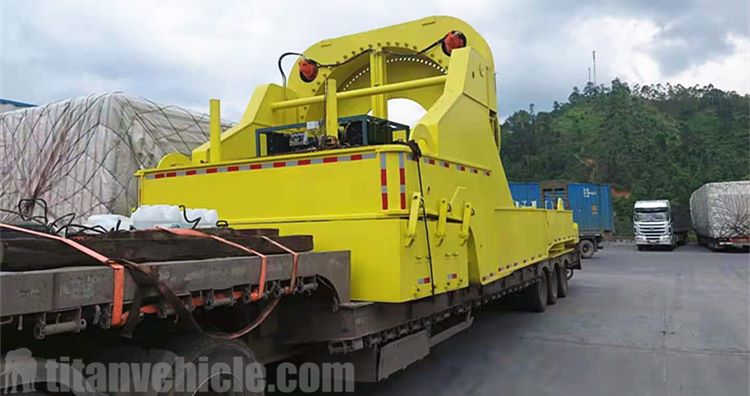

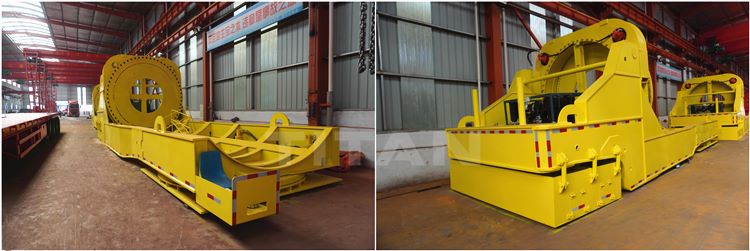

The windmill blade adapter trailer consists of two parts: the excellently designed low-bed trailer and the uniquely designed adapter.
Regarding the trailer, it is an enhanced version of the traditional low bed trailer.
Since the adapter has a lifting function, we also call this type of trailer blade lifting trailer. This model is suitable for mountain transportation, and the cost of purchasing this type of bucket crane is much lower than the cost of road reconstruction. The transfer trailer is designed as a steering axle trailer, which can achieve:
(1) Blade lifting motion: When the oil cylinder is compressed, the blade is lifted, and the blade lifting frame shrinks to the center of the rotating shaft. The motion track of the lifting center of gravity is always near the rotating shaft, which effectively avoids instability during transportation. The lifting angle is in the range of 0-60 degrees.
(2) Rotational movement: The rotating cylinder drives the blade on the rotating bracket to deflect left and right along the center of the semi-trailer. The designed deflection angle is ±45° (calculated from the landing volume in front of the tip of the blade).
(3) The lifting and rotation of the blades and the hydraulic steering of the rear wheel of the tail plate drive the rotating device to move horizontally. The blade can avoid obstacles in the transportation process to the greatest extent, reduce road reconstruction work, shorten the construction period, and reduce investment. This type of scraper trailer has a smaller turning radius, a smaller footprint and convenient reversing. It is particularly suitable for transporting wind turbine blades of various specifications.

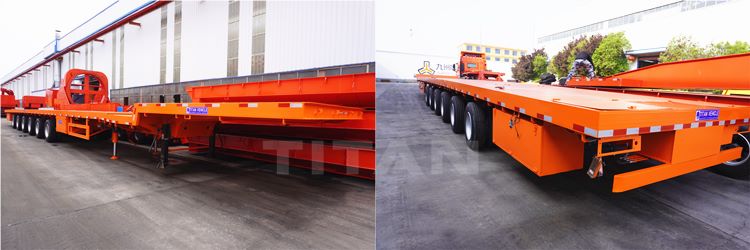

6 Axle 62 Meters Wind Blade Trailer
Structural analysis of the vehicle compound suspension system
The wind turbine blade transport vehicle is a combination of a tractor and a LY9280 ultra-long light transport vehicle. The main vehicle adopts a leaf spring type non-independent suspension, and the LY9280 ultra-long light transport vehicle uses an oil-gas suspension; because the LY9280 ultra-long light transport vehicle has a longer frame , Up to 33 meters, the frame is excited by the road surface transmitted by the suspension system of the vehicle during vehicle transportation, and vibrates, so that the wind turbine blades are subjected to greater impact loads during the transportation process; therefore, we adopt a set of two-stage damping and buffering device is installed between the frame and the blades.
The two-stage damping and buffering device is composed of air springs, shock absorbers, longitudinal pull rods, inclined push rods, transverse stabilizers, etc.; in this way, wind power blades are transported The car has a composite suspension system with multiple cushioning and damping functions, so that the impact load transmitted to the blades is reduced as much as possible. The tractor used in this vehicle is provided by the OEM. Here we only consider the oil-gas suspension system of the trailer and the secondary shock absorber device fixed on the surface of the trailer frame.

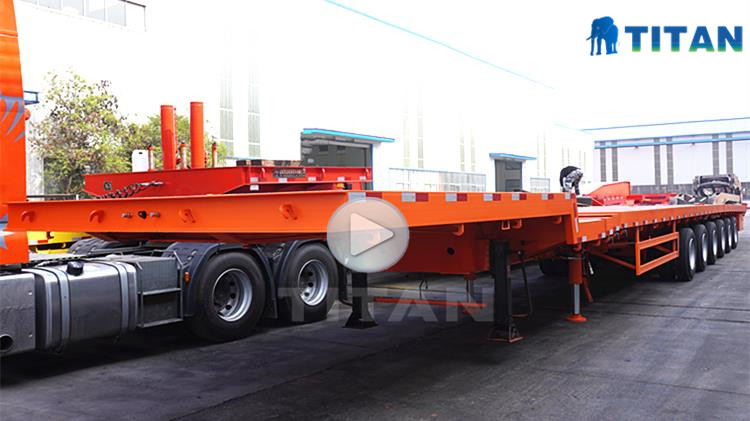

Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
