62m Extendable Trailer will be sent to Vietnam Danang
On February 15th, Vietnam customers Juday received TITAN 4 Axle extendable trailer.
It happened that a local customer Colin saw it and wanted a similar extendable trailer. Juday stated that when he received the 4 axle extendable trailer, he felt that the whole was very strong. When received the trailer, it is attached with TITAN exclusive rain cloth to prevent seawater erosion. The customer is very satisfied with it.
Colin found us immediately and asked for a 6 axle extendable trailer. After talking with the sales manager Jacky, the 6 axle 62 M extendable semi trailer was finally confirmed.

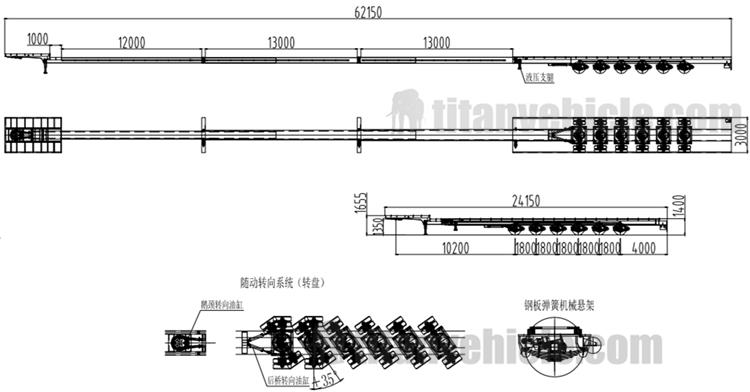

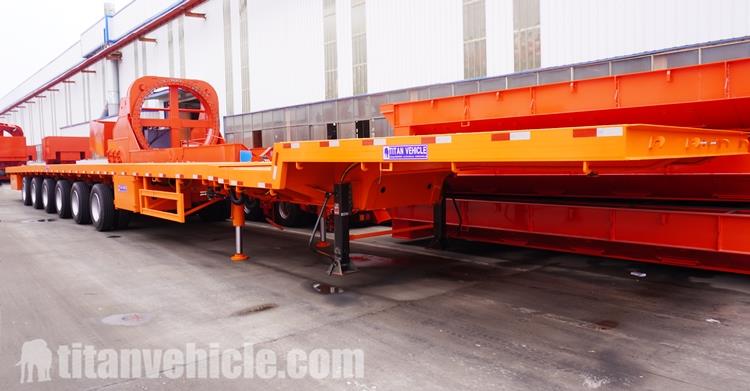

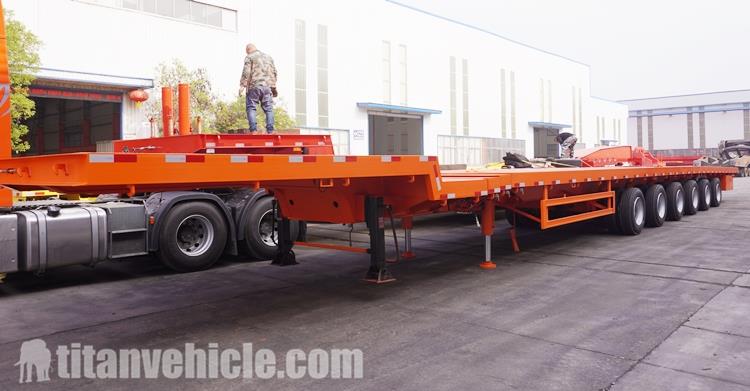

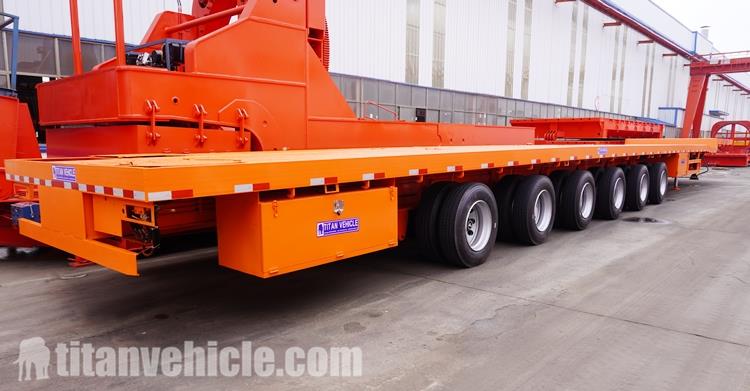

6 Axle 62 meters Extendable Trailer
Longitudinally Extendable Trailers
Longitudinally extendable is commonly used to transport very long cargo, like tanks and windmill blades and bridge sections among other similar-like cargo.
To take these loads, the trailer is extended lengthwise. When it is not carrying any load, it needs to be adjusted back to a short length. Its application and use should, however, be based on the stipulated local laws and driving safety.
Wide Extendable Trailers
Wide extendable trailers are commonly used for taking loads that are big width-wise. The trailer is normally expanded horizontally to give room for such loads.
When it is not taking any load, it needs to be adjusted back to a short width based on the local laws and rules governing driving safety.
To meet the needs of the large-scale movement and transportation of wide cargo on roads, the frame width of the trailer gets adjusted to take up the job.
Longitudinal Extendable Trailer Basic Configuration

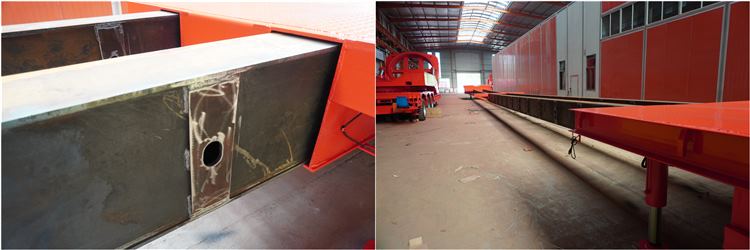

A conventional extendable trailer configuration has a fixed frame and an additional frame that can be connected to the fixed one.
The second frame makes a slide-able contact with the fixed frame to provide the desired longitudinal extension.
This means that the free frame can move in a relative way to the fixed frame for purposes of either lengthening or shortening the apparatus of the trailer.

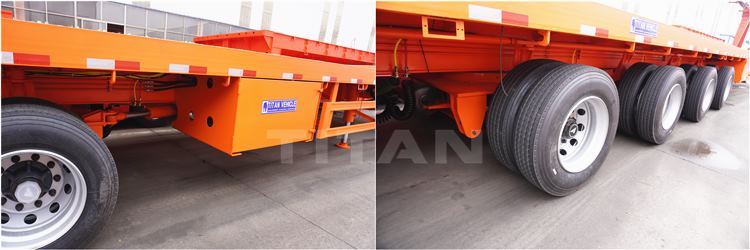

The movable frame is usually situated at the rear section of the tractor-towed trailer. This freely moving trailer is made up of a set of wheels and axle firmly secured to it.
Securing of the load is firmly made to the fixed frame.
Wide Extendable Trailer Basic Configuration
This type of trailer is most applicable to such kind as are secured to tractors during the process of transporting loads.
This trailer mechanism is designed with possibilities of extending it to cater for loads of different lengths in preparation for towing by a tractor over a roadway.
These extendable trailers take different forms. A trailer mechanism is provided for coupling to a pivot-able trailer ramp to help during the manual lowering and lifting of a ramp.
The ramp’s lateral positioning is made possible in order to accommodate different load bases.
With such possibilities, you can make the most suitable adjustments to ensure that your load is safely seated on the trailer without fears of falling off during transportation.

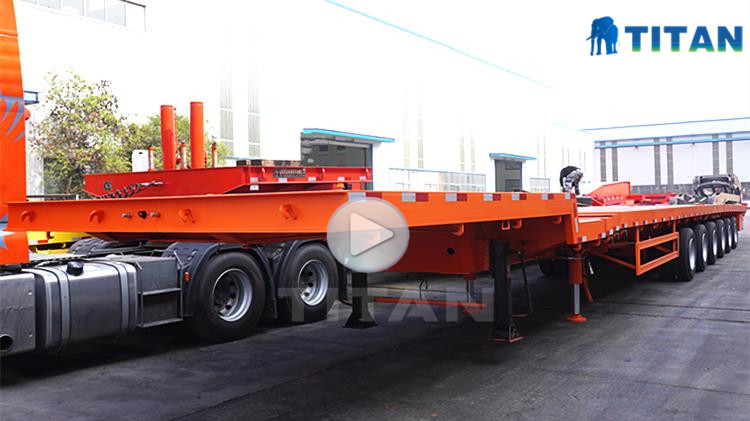

Here is the Extendable Windmill Blade Trailer transportation details display video. This kind of semi trailer was designed with lots of advantages and features. If you want to get more information, please don't hesitate to make contact with us.
