Grain Transport Drop Side Trailer will be Completed and Shipped to Tanzania
It is the first time for Tanzania customer to use a drop side trailer. Even though we have already explained the use of the grain transport trailer and some precautions to the customer, of course we also have a detailed instruction manual and instructional video for customers' reference. This is one of the reasons why customers buy semi trailers at TITAN.
The grain transport drop side trailer is about to be completed in the factory and is ready for shipment at any time.

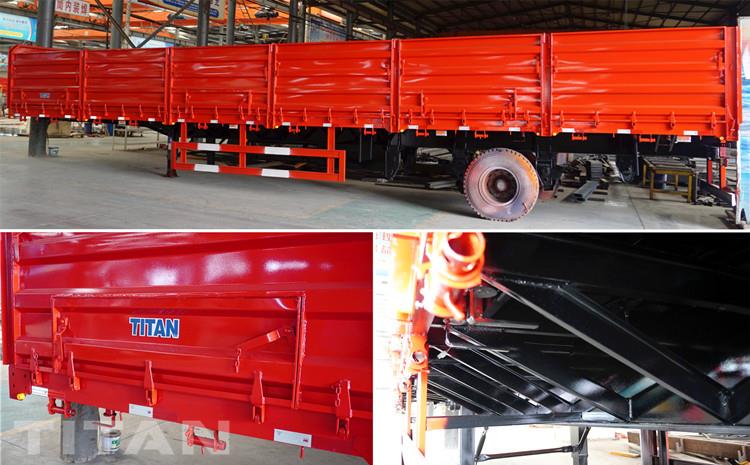

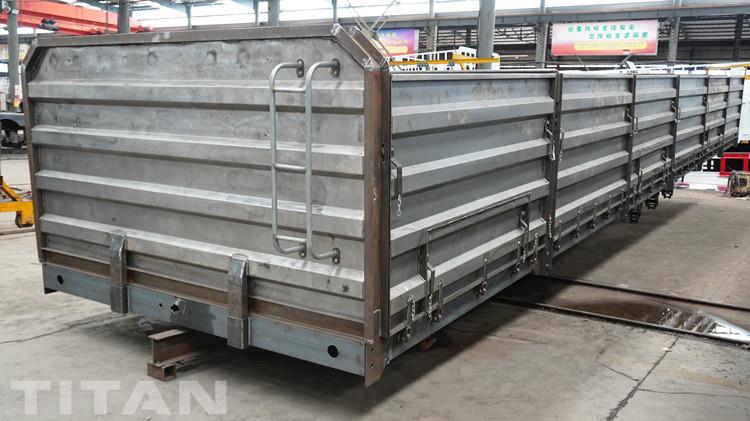

Frame of Grain Transport Drop Side Trailer in Factory
1. The traction height of the drop side trailer, the size of the traction pin, the front turning radius, and the gap radius must be matched with the tractor, and it should be checked before connection;
2. Carefully check whether there is sand, dust or other foreign matter on the working surface of the saddle of the tractor, the tractor pin of the semi-trailer, or the tractor, and whether there is sufficient grease;
3. Adjust the support legs to make the drop side trailer traction slide fit the height of the traction saddle so that the traction truck saddle is connected to the traction pin; then move the tractor slightly forward to check whether the connection is good;

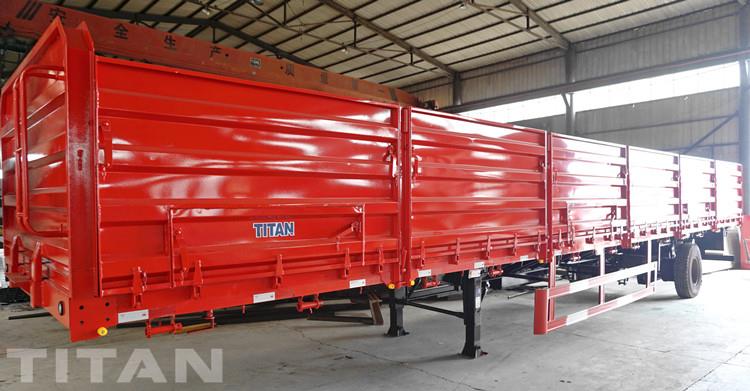

Details of Grain Transport Drop Side Trailer for Sale in Tanzania
4. Pneumatic connection
Connect the two trachea joints (commonly known as handshake) on the tractor to the two trachea joints on the grain transport trailer (note the color of the joints: red is the supply line, blue is the control line)
After the air joints are connected to each other, you must unscrew the semi-trailer air connection disconnect switch on the tractor to make it ventilate, otherwise the air cannot be supplied to the brake system of the semi-trailer and the brake system will not work;
Start the engine, check for air leakage in the air circuit, and check whether the braking system is working properly;
5. the connection of the circuit
Insert the cable connection plug of the tractor into the cable connection socket on the front of the grain trailer with drop side.
Check whether the electrodes are well connected, and confirm whether the lights work normally, and replace the electrode wiring if necessary.

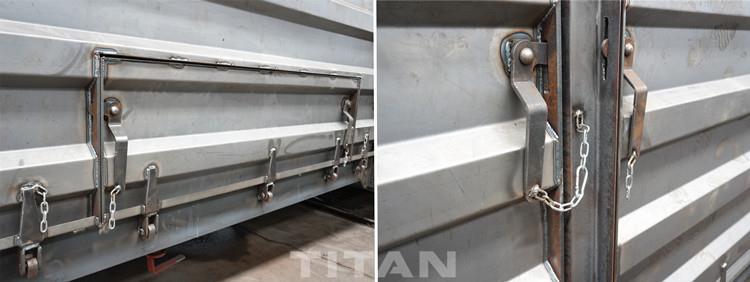

Details of Grain Transport Drop Side Trailer for Sale
1. All back doors, side doors and side boards should be locked
2. When turning, the speed should be reduced to reduce the impact of the cargo on the side walls and prevent rollover.
3. Speed should be reduced at railway crossings and uneven roads to reduce the impact of cargo on trailers.
4. For the safety of vehicles and people, it is strictly prohibited to overload the cargo in the carriages during loading or unloading or transportation.
5. For container transportation, check whether all turn locks are locked.
You can download video, you can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axles high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 axle side wall semi trailer with bogie suspension, dropside drawbar trailer). And the process, testing, packaging and customer feedback, etc.
Welcome to download our quotation, if you have other questions, please contact us
