3 Axle 80 Ton Removable Gooseneck Trailer will be sent to Cayman Islands
Cayman Islands Customer came to TITAN to consult about the business of Removable Gooseneck Trailer through a friend's introduction. Sales manager Barry introduced the 3 axle Removable gooseneck trailer in detail and sent a detailed quotation and various detailed pictures and videos to the customer to help customers understand TITAN's Tri axle Removable gooseneck trailer more systematically and quickly.

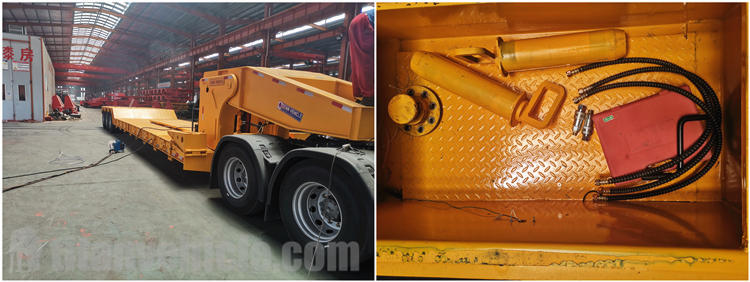

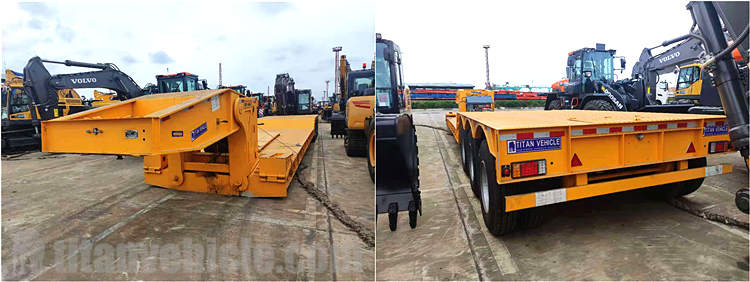

After a series of conversations, the customer finally chose TITAN among the 5 suppliers. Below is a picture of being packaged and shipped.

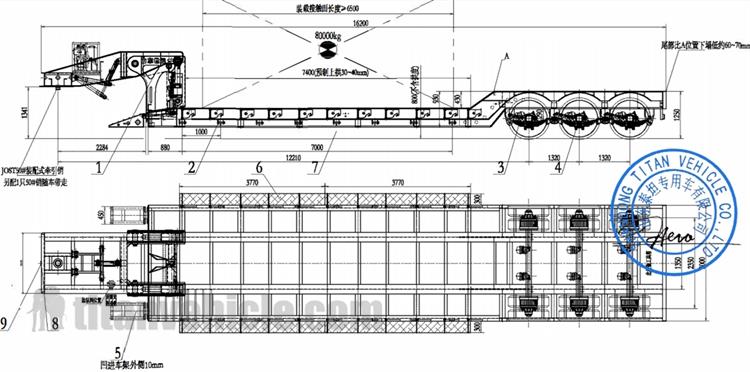

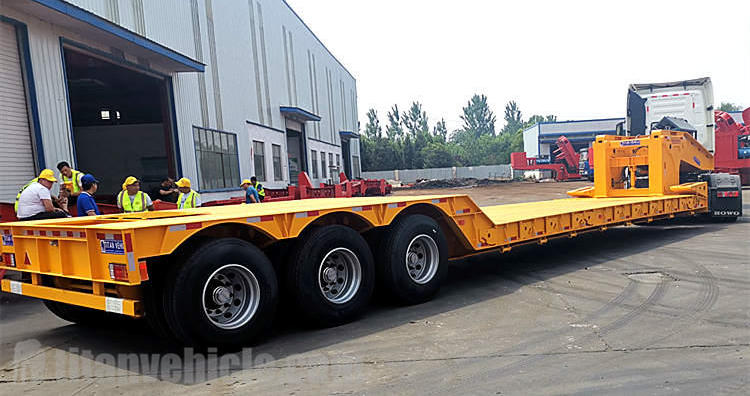

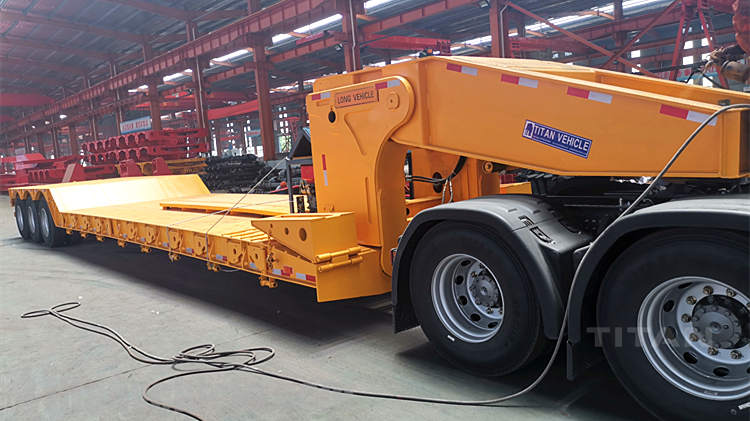

3 Axle 80 Ton Removable Gooseneck Trailer
Structure
The removable gooseneck trailer can use the lifting cylinder installed on the vehicle to support the front part of the semi trailer body on the ground. After the tractor is separated from the saddle of the semi trailer, the tractor is driven away from the semi trailer. When the tractor leaves, the front part of the semi trailer can be placed on the ground through the lifting cylinder, and the lifting cylinder can be continuously manipulated to convert the gooseneck platform into a semi trailer ladder, thereby solving the problem of the large rear part of the gooseneck lowbed trailer. Difficult loading and unloading of mechanical engineering machinery and mining machinery.
Some models of removable gooseneck trailer frame are equipped with a hydraulic motor to drive the coiling machine, which is full of chains and live wire ropes. When the construction machinery and mining machinery that it transports have a small climbing ability, the winding yard machine can be used for auxiliary traction to increase the loading speed.
1. Strong carrying capacity
Most of this type of removable gooseneck trailer has large tonnage, so the body is mostly designed with an arched cargo bed, and the longitudinal beams are mostly multi-longitudinal high-strength steel structures, which reduces the weight and improves the carrying capacity.
Lowboy trailer's main beam of TITAN is made of HG60 high-strength structural steel. The yield strength of HG60 steel is ≥ 620MPa, which is more durable and stronger than ordinary steel. Its bearing capacity is 5 times of that of Q345 steel trailer. TITAN lowboy trailer adopts reinforced the gooseneck and upper and lower plate by double layer.
2. Low center of gravity and good stability.
Due to the low ground clearance and low longitudinal beam height of this kind of Gooseneck Lowboy Trailer, the load-bearing surface is 300-400mm lower than that of the normal concave-center removable lowboy semi-trailer, thereby effectively reducing the height of the center of gravity of the loaded goods and improving the stability during transportation.
Oilfield trailers bottom plate, other suppliers usually use 3 or 4 mm bottom plate, But TITAN adopts 5 mm thick bottom plate, It's more durable and won't be deformed.
3. Good performance
The cargo bed load-bearing surface of the removable gooseneck trailer can be adjusted to the ground height by a hydraulic device as needed, and when it passes through culverts or bumpy roads, the cargo bed load-bearing surface can be lowered or raised to improve its passing performance.
4. The effective length of the cargo bed is long
Because this type of model eliminates the rear ladder, the bearing surface can be lengthened, and because the construction machinery does not go from the rear, the slope angle in front of the bridge can be appropriately increased, so that the bearing surface can be lengthened. The length of the low flat cargo table with a ladder at the end is longer, which can effectively load more loads, indirectly improve the loading efficiency, and create greater benefits for users.
5. Easy maintenance
Because the bearing surface can be raised and lowered, the tires on a bridge can be grounded, and other tires can be safely and conveniently replaced or other maintenance work without detaching.
You can download video, you can learn about different types of removable gooseneck trailers (like 60ton/80ton/100ton/120ton/150ton detachable gooseneck trailer). And the process, testing, packaging and customer feedback, etc.
