TATA Side Wall Trailer Triaxle for Sale in Mauritania
TITAN side wall trailer is becoming more and more popular. Mr. Aldo came from Mauritania. And he was looking for a semi trailer. With this purpose, he found us through Alibaba and chose to make contact with us. After we knew his requirements and conditions, we offered several configurations for him to consider. In the end, he decided to buy triaxle side wall trailer.
We have to admit that the packaging and delivery are essential steps before triaxle side wall trailer were sent to the hand of our customers. We have professional staff to make packages. All of them were trained constantly.
TATA Side Wall Trailer Triaxle will be sent to Mauritania
TITAN Side Wall Trailer is your ideal partner for multipurpose solution catering to vast range of applications including Cement Bags, Agri bags, Tiles, Jumbo bags, steel coils, pet coke, etc.
Its higher payload carrying capacity, better mileage and availability of different product variants catering to varying customer's needs. The vehicle provides you with longer tyre life, high fuel efficiency and less maintenance cost which gives you higher revenue and lower operating cost, substantially increasing your overall profit.
With ability to carry heavy loads with utmost ease and OEM assured body warranty, TITAN Side wall trailer is an ideal choice for your business.
1. Sidewall semi trailer frame. Frame is the main and important part of load-bearing. It is composed of main beams, side beams, cross beams and tilted supports.
2. High side board. The side wall is divided into a flat plate and a vertical corrugated board. Can be detached or welded to death.
3. Side wall trailer protection device. Dry goods carrier trailer protection rotect pedestrians and other general cargo trailers from getting under the tata side wall trailer. It can also reduce wind resistance and save fuel.
4. Traction king pin of dropdeck trailer. The traction pin is an important component that connects the high side trailer to the tractor and withstands traction, and is connected to the traction seat.
5. Support leg. In order to make the dry goods carrier trailer reliably parked after leaving the truck head, the front end of the frame is equipped with two support legs that are linked left and right or left and right.

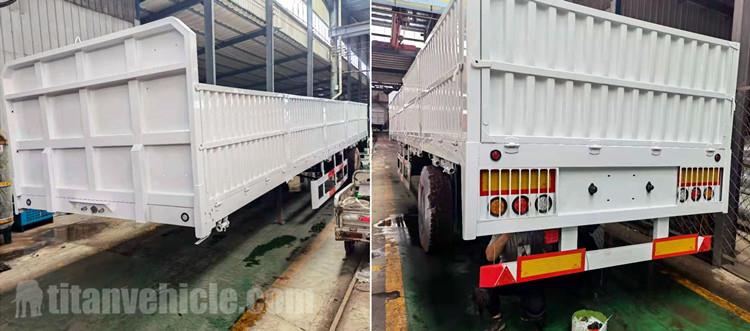

Triaxle Side Wall Trailer in Factory
6. Axles and tires. Side wall trailer triaxle assemblies of the same structure are installed under the suspension system.
7. Suspension system. The suspension system is a three-axis leaf spring suspension suspension, which is used to support the load and has the function of absorbing driving vibration and so on.
8. Brake and operating device. The side wall trailer uses a dual-line pneumatic braking system and is equipped with an anti-lock braking system (ABS).
9. Electrical system. The 60 ton side wall trailer is equipped with an international electrical system that is compatible with the tractor.
10. Trailer attachment. Other accessories on the semi-trailer include tool box, spare tire frame, stakes and so on. There are also some small accessories, such as tight-fitting ropes and rope hooks.
You can download video, you can learn about different types of side wall semi trailers(like 3 axle sidewall trailers, 4 axles high side trailer, grain hopper trailer, aluminum alloy side board trailer, 2 axle side wall semi trailer with bogie suspension, dropside drawbar trailer). And the process, testing, packaging and customer feedback, etc.
Welcome to download our quotation, if you have other questions, please contact us
