Tri Axle Side Dump Trailer for Sale in Cote d'Ivoire
The customer contacted the sales manager Cassiel through a friend's introduction. Customers mainly transport sand and stones, and occasionally bulk cargo. Customers demand high efficiency and want a tipper trailer that will not dump. According to the customer's real needs. Cassiel recommends using the tri axle side dump trailer.
Because TITAN tri axle side dump trailer has become an industry benchmark. As opposed to the traditional end dump design, the 3 axle side dump trailer is almost immune to tipping over while dumping. Regardless of the tipping angle, side dump trailer the body must be strong, yet flexible enough to allow for bending and twisting without cracking.

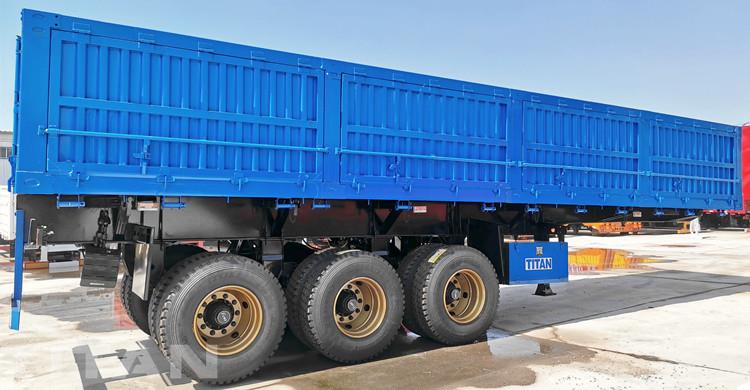

Below is a detailed picture was taken by the sales manager Cassiel in the factory.

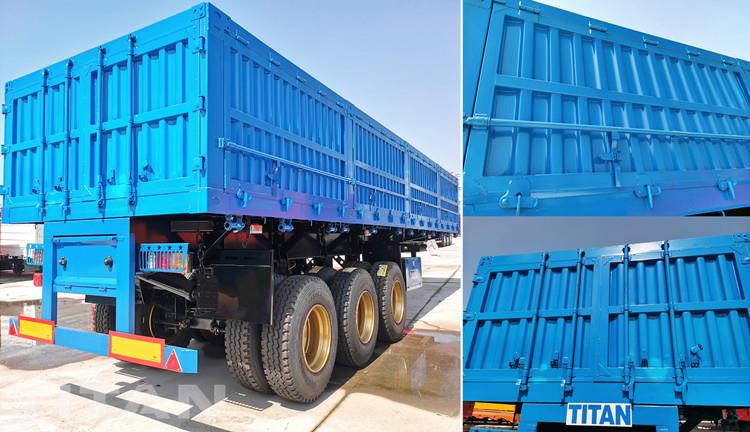

Side Wall of Tri Axle Side Dump Trailer for Sale
The most important part of the tri axle side dump trailer is the specifications of the frame, hydraulic system and diagonal brace. When purchasing the tri axle side dump trailer, users must pay attention to the load-bearing capacity of the beam. Try to choose famous brands for the hydraulic jack and pay attention to the diagonal brace. Factory welder and reinforcement.
1. The specifications of the girders:
Due to the uneven forces on the side dump trailer, the higher requirements for the load-carrying capacity of the beam are self-evident. The beam is self-evident for a trailer. For a semi side dump trailer, the beam is generally higher than that of a van of the same load. The girders should be larger in size.
On flat roads, there is a subframe, and the force on the girder is the same as that of an ordinary van, but when it rolls over, the force on the girder is uneven.
The cargo that tri axle side dump trailer pulls is generally heavy cargo such as steel, stones, coal, etc., which also requires the high load-bearing capacity of the girders.

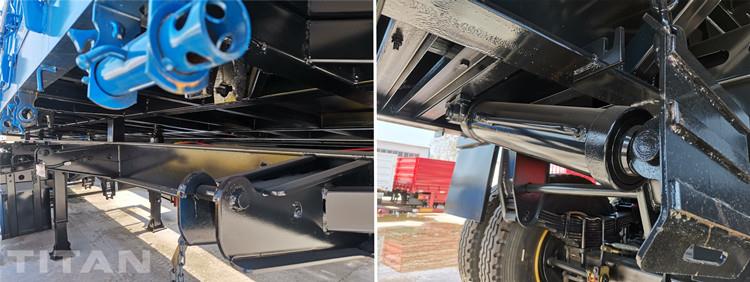

Details of Tri Axle Side Dump Trailer for Sale
2. The number of hydraulic jacks depends on the tonnage and the support must be firm
The hydraulic jack is an important part of the tri axle side dump trailer. According to the different deadweight tonnage, there are generally several diameters such as 110, 125, 130, 150, etc. The general standard load is not more than 60 tons. 110 5+1 (5 lifts) Lifting cylinder, a displacement cylinder) or 130 5+1; heavy load 80 tons-120 tons generally use 6+1 or 7+1 150 cylinder. The displacement top generally uses 160 or 180 cylinders.
The brand that is used more is Hyva, and the quality and service are better.
The hydraulic roof support carries a large part of the weight of the cargo when it is lifted, and the firmness of the support is very important. The shaft at the joint of the hydraulic jack and the sub-frame should be well protected, otherwise, it is easy to bend.

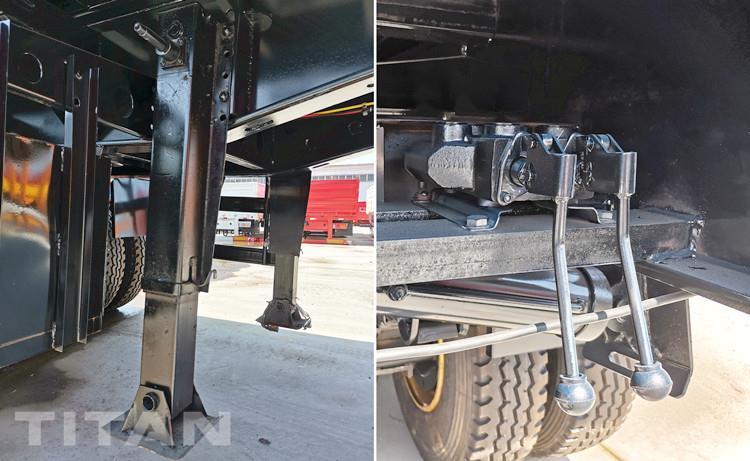

Tri Axle Side Dump Trailer for Sale in Cote d'Ivoire
3. Diagonal bracing reinforcement is very important and the more fulcrums, the higher the reliability
Diagonal bracing, when it rolls over, most of the weight of the cargo is borne by diagonal bracing. Therefore, the firmness of diagonal bracing is very important. Once the diagonal brace has a problem, it will easily cause a rollover accident. Therefore, the reinforcement of the diagonal brace is very important. In the picture above, one support point has 6 channel steel reinforcements.
The number of diagonal braces should be reasonable. Of course, the more the better, the more rollover braces, the smaller the force that each pivot can bear, and the higher the reliability. Generally, there are 5 pivots for 13m rollover and 6 for 15m. individual. Pay attention to the rotating bracket at the top of the diagonal brace. The pin should be pulled out when it rolls over. If the design here is unreasonable, it will be easy to pull out if it is bent a little, which will affect the unloading.
Through this video, you can learn about different types of semi tipper trailers, such as u shape dump semi trailer, side tilted dumper trailer, container tipper trailer, tipping chassis trailer.
And the process, testing, packaging and customer feedback, etc.
