Different Parameters, Different Price. Price Reference Only.

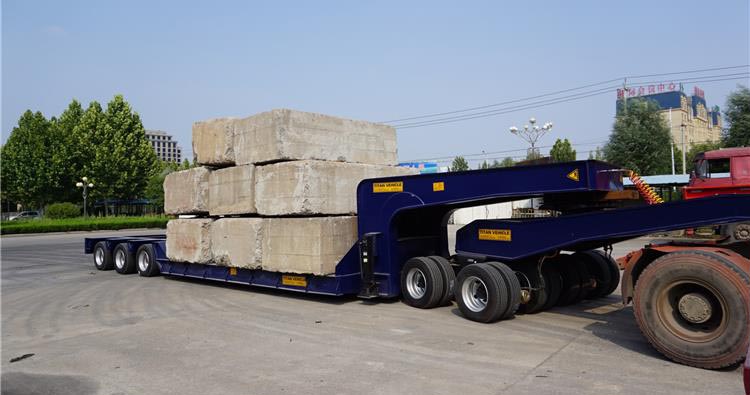

200 Ton Hydraulic Low Bed Trailer for sale can load more widen heavy machines, like the bulldozer, excavator, etc. The height of the tires is lower than the working platform.
Hydraulic Low Bed Trailer for sale can load more widen heavy machines, like the bulldozer, excavator, etc. The height of the tires is lower than the working platform, which makes the height is lower than the normal lowbed truck for sale. This lower lowbed truck is easy to load or unload the heavy machines.
TITAN 200 Ton Hydraulic Low Bed Trailer for sale main beam adopts submerged arc welding technology, that ensures the smooth, sturdy welding seams and avoids welding-opening problems. And also improve the loading capacity. Main beam height is 550-580mm. The front/down plate width is 220mm, and thickness is 22mm.
200 Ton Hydraulic Low Bed Trailer for Sale
Details of 3 line 6 axle low bed trailer
Overall dimension: 15800mm * 3000mm *3400mm
Loading capacity(T): 120-150T
Axle: 13T/16T, FUWA / BPW / TITAN Brand
Rim: 8.0-20
Tire: 11.00R20
Suspension: Mechanical suspension
Spring leaf: 90(W)mmx13(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Landing gear: JOST brand
Main beam: Height: 500mm, Upper plate: 20mm, Middle plate: 12mm, Lower plate: 20mm, Material: Q345B steel.
Bottom Platform: 5mm thick checkered plate
Ramp: Spring ramp
Gooseneck: Optional
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Through this videos, you can learn about different types of lowbed semi-trailers,like 2axle,3axle,4axle lowbed semi trailer,hydraulic ladder lowbed semi trailer,etc.As well as the process, testing, packaging and customer feedback, etc.
150 ton low loaders 3 line 6 axles Lowbed Trailer with dolly details display video
