Compare to rear ramps, mechanical folding neck trailer is shallow and stable, could effective solutions for cargo loading.
When unhooking from the prime mover, the folding neck trailer for sale’s neck could be folded to ground as a shallow slope for crawler crane and other machines to drive on.
The gooseneck of this mechanical folding neck lowboy trailer is a design with a hydraulic folding structure. When the structure folded, it’s a gooseneck to connect the folding gooseneck trailer for sale with the prime mover. When it unfolded, it’s will touch the ground as a shallow slope for cargos loading. Compare to rear ramps, it’s shallow and stable, could effective solutions for cargo loading.

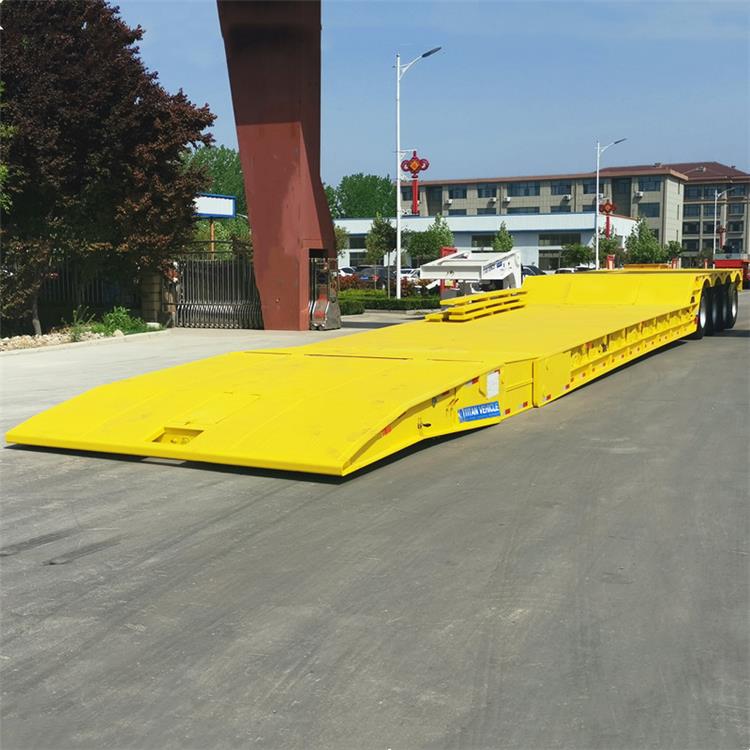

4 Axle Folding Neck Lowboy Gooseneck Trailer for Sale - TITAN Vehicle
4 Axle Folding Neck Lowboy Gooseneck Trailer for Sale - TITAN Vehicle
Dimension: 18000mm x 3800mm x 1800mm
Working platform: 14000*3800MM
Loading capacity: 100 TONS.4 AXLES,16TONS.
Gooseneck: hydraulic folding gooseneck.
Side hook for chain or belt
Checkered plate with 20 mm squre bar on ramps
Twist locks :6 units for 40/45 ft container
Axle: 4 Axle
Tire: 16 units, 8.25R20/10.00R20/11.00R20/12R22.5
Suspension: Mechanical suspension or air suspension
Spring leaf: 120(W)mmx16(Thickness)mmx10 layers
Kingpin: JOST brand 2.0 or 3.5inch(bolted or welded type)
Tare weight: About 9.5-19T
Hydraulic cylinder: 12KW diesel engine with hydraulic station
Ramp: spring or hydraulic type
ABS: Optional
Valve: WABCO valve
Light: LED light (specially intended for oversea markets)
Voltage: 24V
Tool box: 1 set
Painting: Polyurethane paint, with long service lift, and avoid the vehicle get rust
Through this video, you can learn about different types of lowboy semi trailers, as well as the process, testing, packaging and customer feedback, etc.
